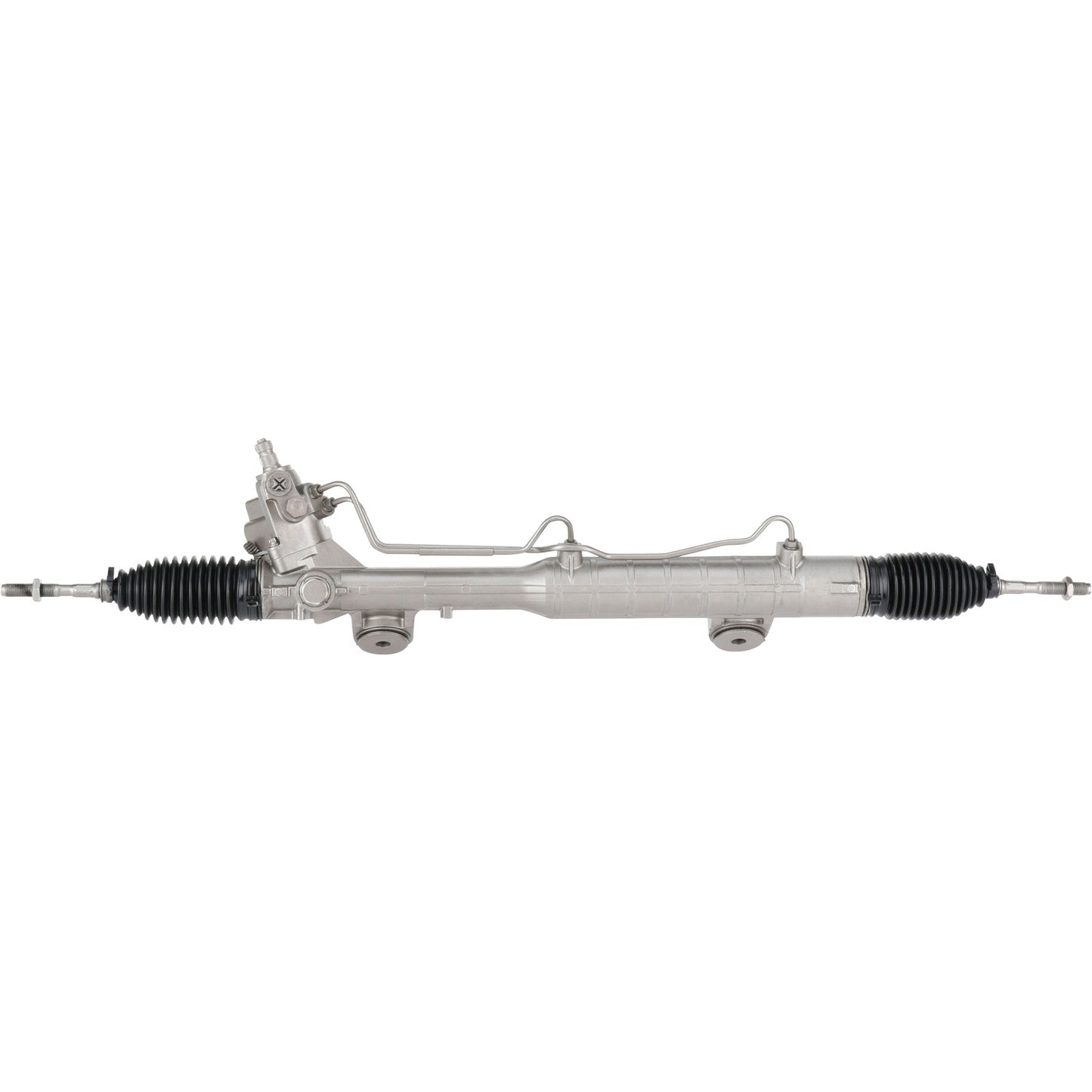

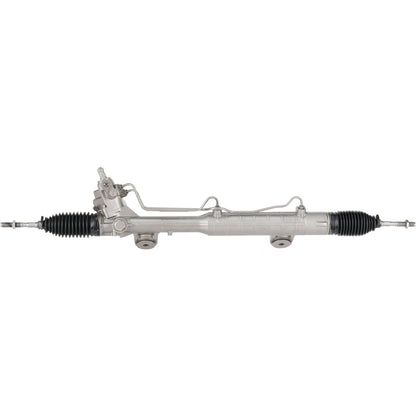

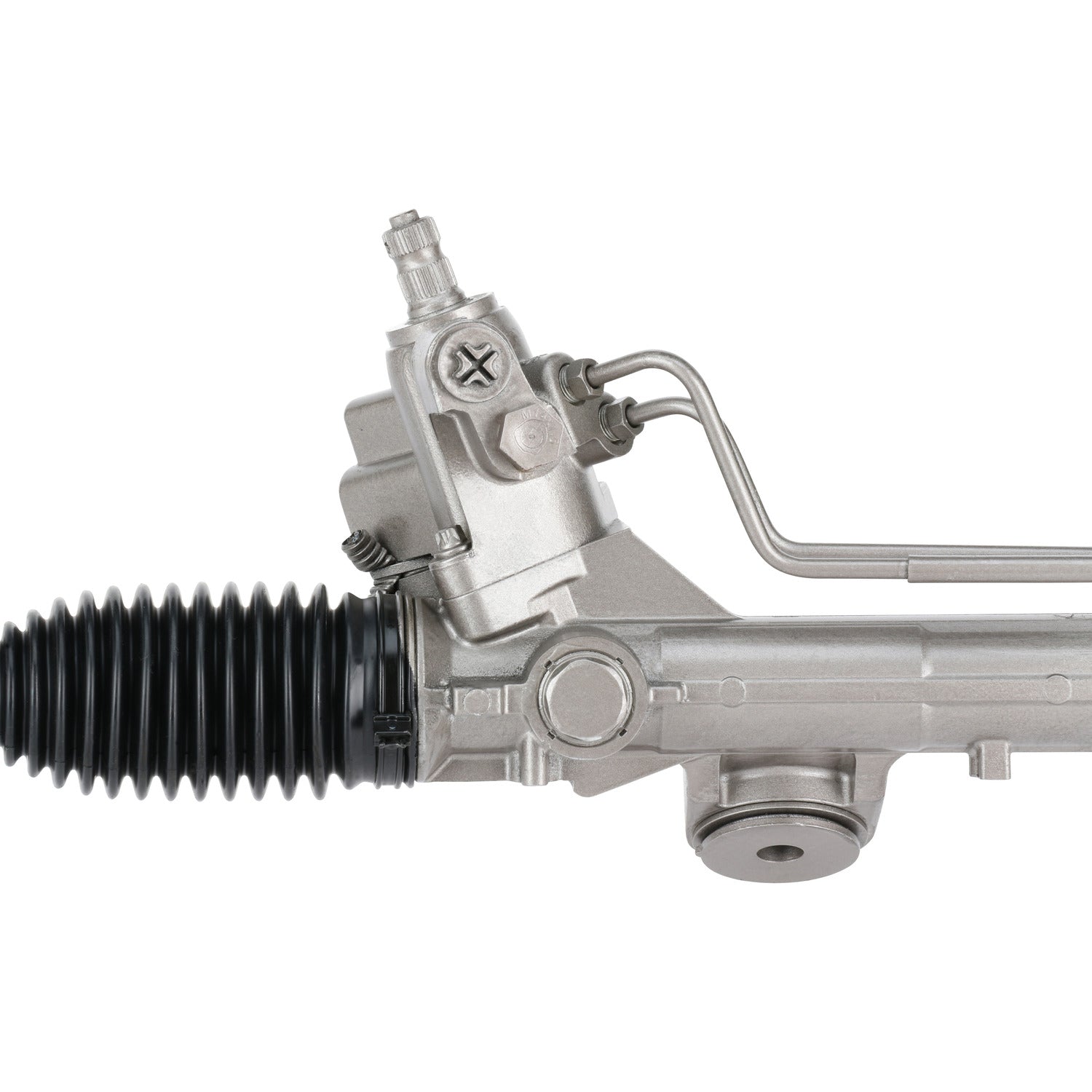

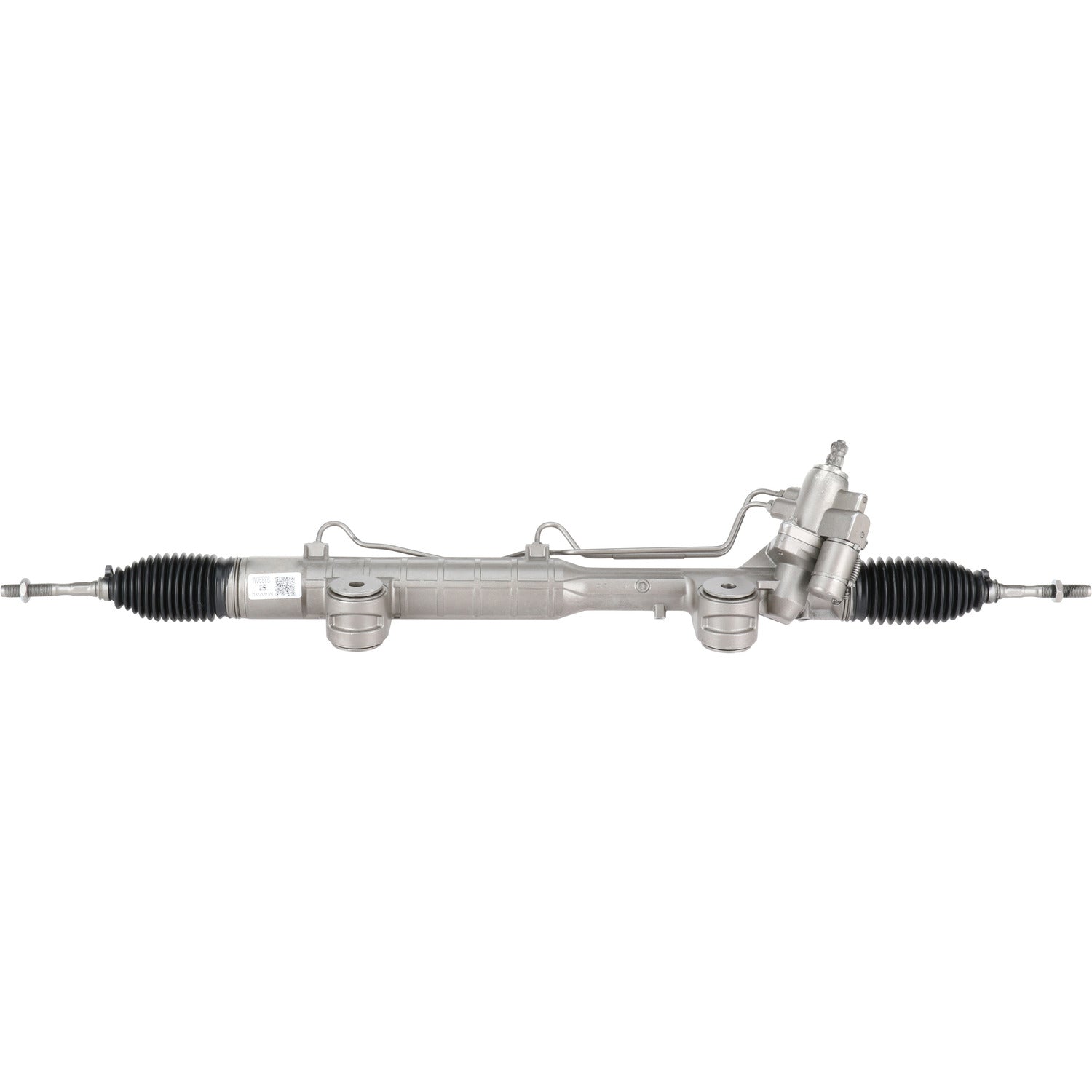

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93390M
Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93390M
SKU:93390M
MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.
| Casting Material | Aluminum | |
| Distance Between Mounting Holes | 14.13 | IN |
| Distance Between Mounting Holes | 358.78 | MM |
| Hose Port Type | O-Ring | |
| Input Shaft Diameter | 0.75 | IN |
| Input Shaft Diameter | 19.05 | MM |
| Input Shaft Length | 1.13 | IN |
| Input Shaft Length | 28.58 | MM |
| Mounting Hole Quantity | 2 | |
| Pressure Port Thread Size | M14 x 1.5 | |
| Rack Length | 41.56 | IN |
| Rack Length | 1055.7 | MM |
| Return Port Thread Size | M16 x 1.5 | |
| Thread Length | 1.83 | IN |
| Thread Length | 46.41 | MM |
| Inner Tie Rods Included | Yes | |
| Total Turns Lock To Lock | 2.6875 |
Application Info: 2011-2012 INFINITI G25 (Drive: RWD / Qualifier: with Sport Tuned Suspension); 2009-2013 INFINITI G37 (Body: Sedan & Drive: RWD / Qualifier: with Sport Tuned Suspension / Note: With EVO component); 2007-2008 INFINITI G35 (Body: Sedan & Drive: RWD / Qualifier: Rear Active Steering / Note: With EVO component)
Interchange: Infiniti - 49001-JK62A - Infiniti - 49001-JK62C - Infiniti - 49001-JK62D
BBB Cross-Reference:
Cardone Cross-Reference: 26-3077
