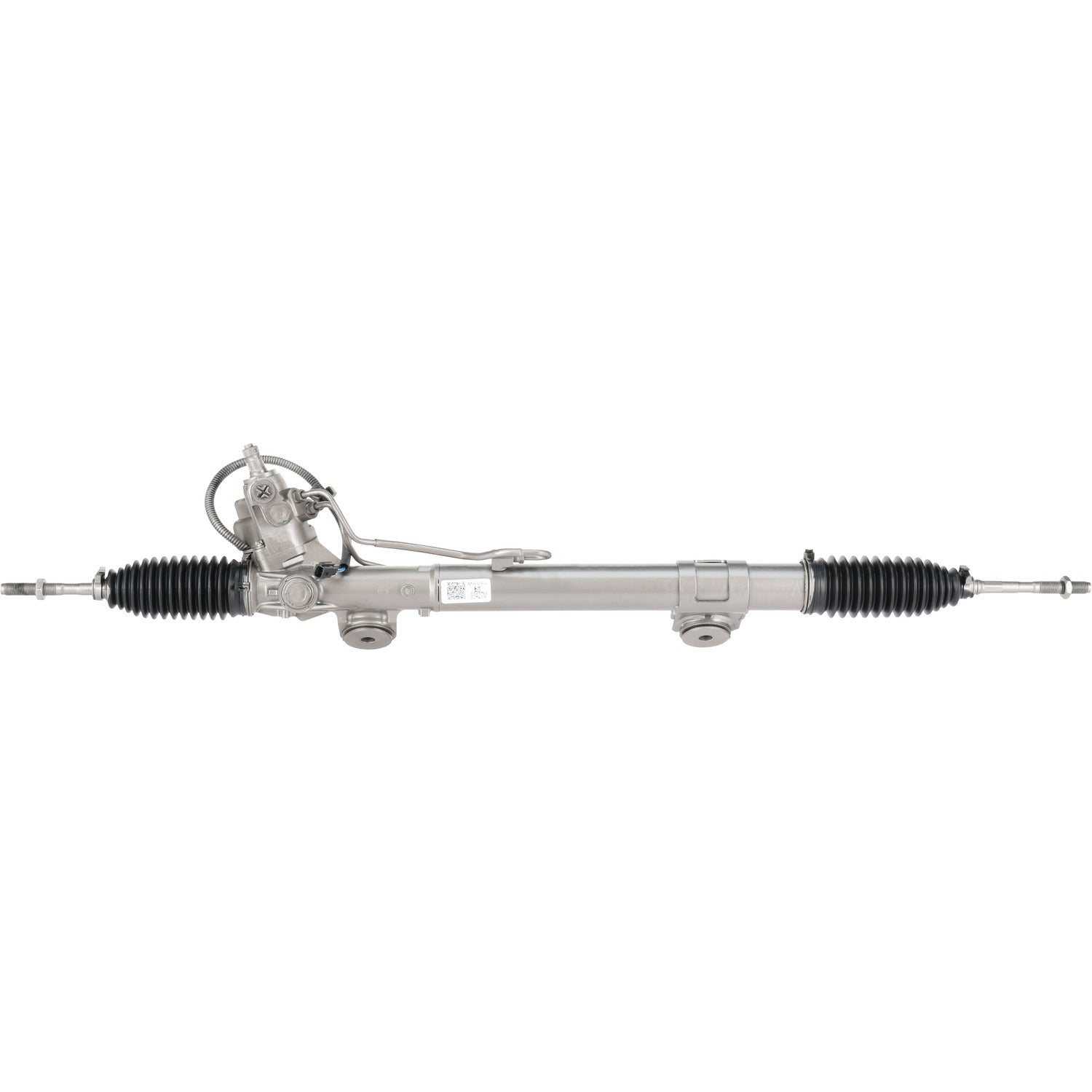

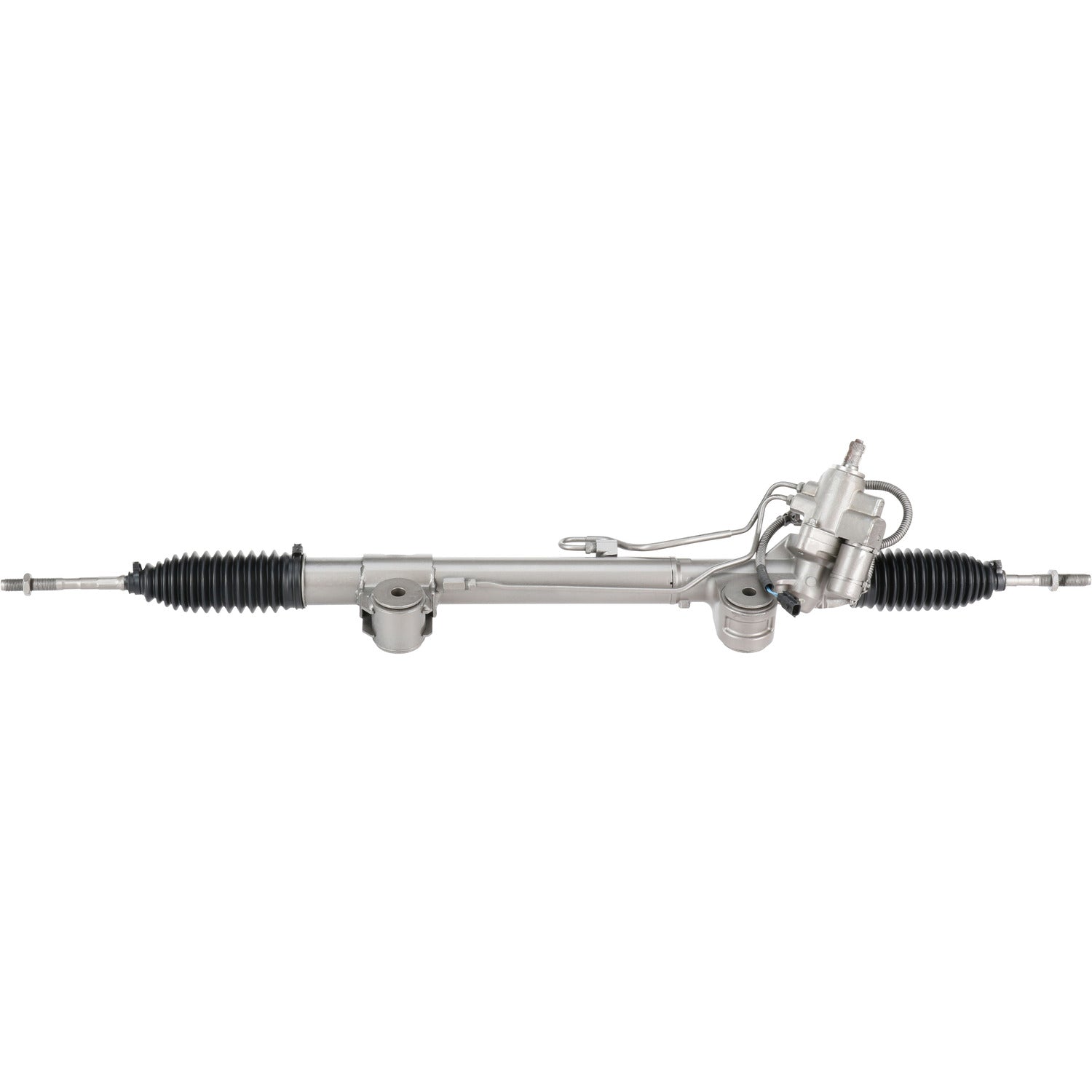

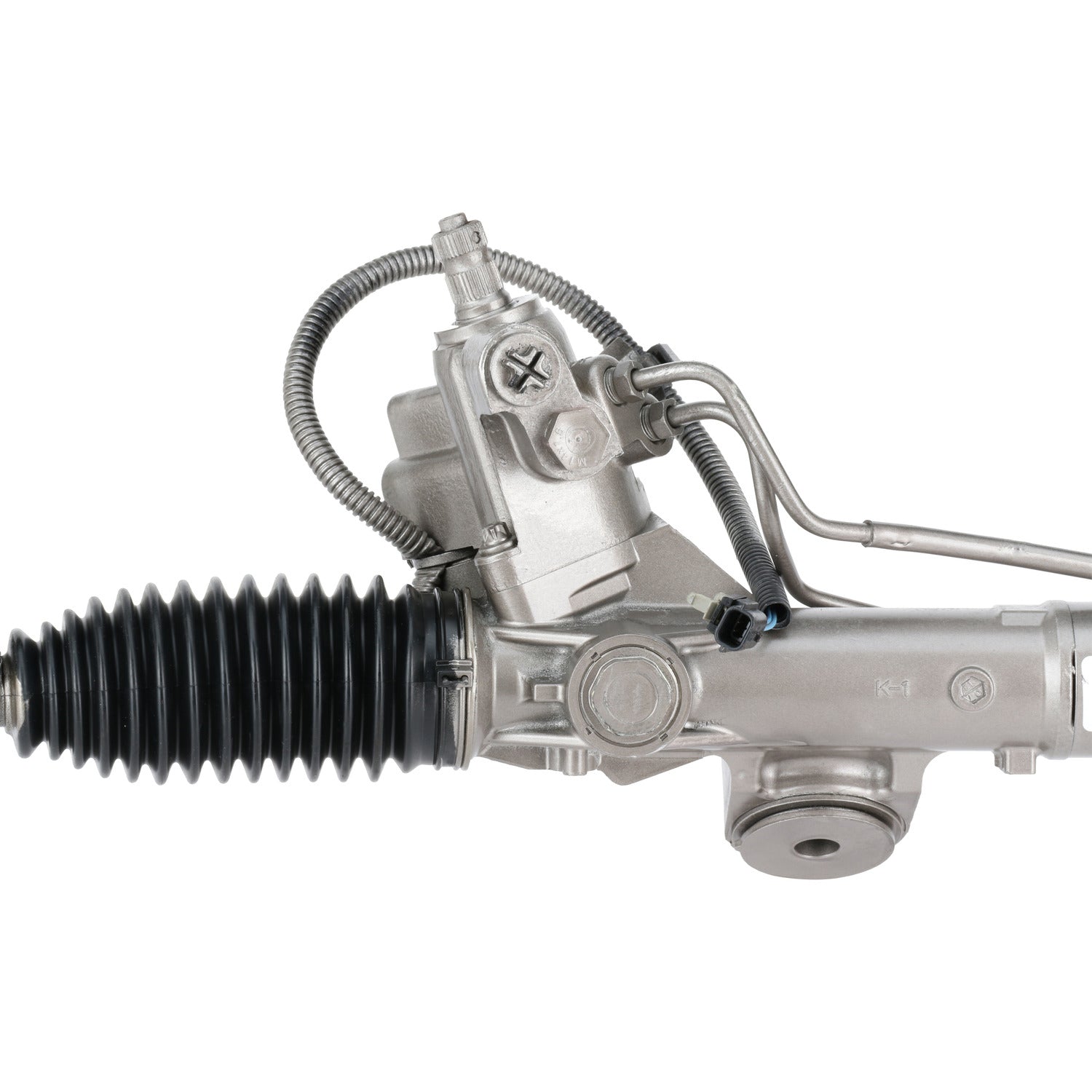

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93427M
Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93427M
SKU:93427M
MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.
| Distance Between Mounting Holes | 14.125 | IN |
| Type | Hydraulic | |
| Inner Tie Rod Length | 8.25 | IN |
| Input Shaft Diameter | 0.682 | IN |
| Input Shaft Diameter | 17.33 | MM |
| Input Shaft Length | 1.25 | IN |
| Input Shaft Length | 31.75 | MM |
| Mounting Hole Quantity | 2 | |
| New Or Remanufactured | Remanufactured | |
| Pressure Port Thread Size | M14x1.50 | |
| Rack Length | 44 | IN |
| Rack Length | 1117.6 | MM |
| Return Port Thread Size | M16x1.50 | |
| Total Turns Lock To Lock | 3.063 |
Application Info: Infiniti M37 (2011-13), M56 (2011-13), Q70 (2014-19), Q70L (2015-16) ***W/RWD, W/O 4-Wheel Steering***
Interchange: 49001-1MA2A
BBB Cross-Reference: 310-0228
Cardone Cross-Reference: 26-30006
